TT-02R Chassis Kit LTD[No Motor / ESC]

This variant of the efficient 4WD TT-02 chassis includes a range of option parts, allowing you to compete at the front of the race! Aluminium rear uprights give 3-degree toe-in for more stable cornering, while an aluminium motor mount makes for greater rigidity and enhanced heat dissipation. A highly reliable drivetrain employs full ball bearings, aluminium propeller shaft and centre cups, plus metal drive shafts and joint cups. Suspension is fitted with CVA oil dampers and black coil springs; they provide superior cushioning and improved traction. The kit also includes a TT-02 high speed gear set (68T).

Featured Components

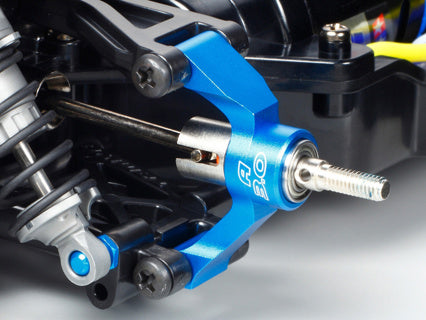

Aluminium Rear Uprights (3-Degree Toe-In)

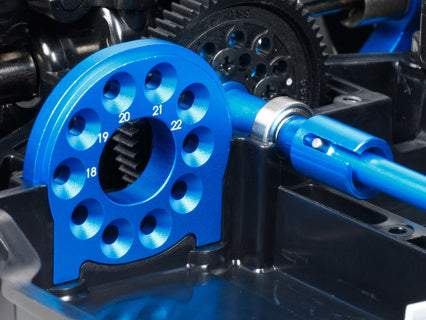

Aluminium Motor Mount
TT-02 Aluminium Propeller Joints
TT-02 Aluminium Propeller Shaft
TT-02 Full Ball Bearing Set
Metal Drive Shafts, Wheel Axles and Gearbox Joints
3x18mm Aluminium Turnbuckle Shafts
4mm Aluminium Flange Lock Nuts (Blue)
5mm Aluminium Short Ball Connector Nuts (Blue)
5mm Aluminium Ball Connectors (Blue)
Medium-Narrow Racing Slick Tires
5mm Ball Connectors

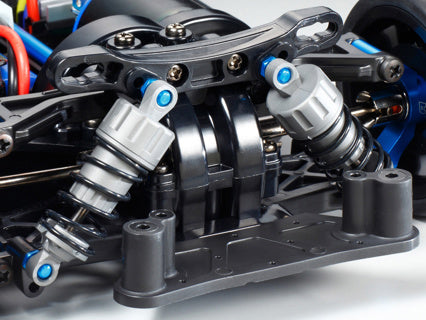

CVA Oil Dampers & Springs

Specifications

• Scale is 1:10
• Length: 376mm, width: 182mm
• Wheelbase: 257mm　
• Tire width/diameter: 24/64mm (front & rear)
• Bathtub-type frame
• Shaft-driven 4WD
• Front/rear 4-bevel resin differentials
• 3-piece steering tie-rod
• 4-wheel double wishbone suspension
• Front/rear CVA oil dampers
• Includes 68T and 64T spur gears. Combine with separately-sold pinions for gear ratios from 9.82:1 to 5.74:1

Separately Required Items
2-channel R/C system with ESC
Battery pack and charger
Batteries for transmitter
Type 540 Motor
Body
