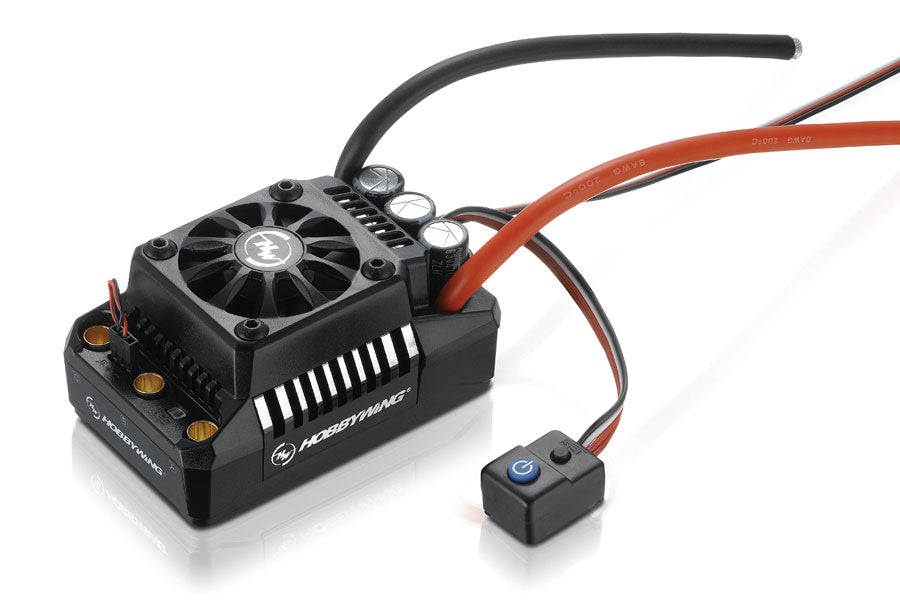

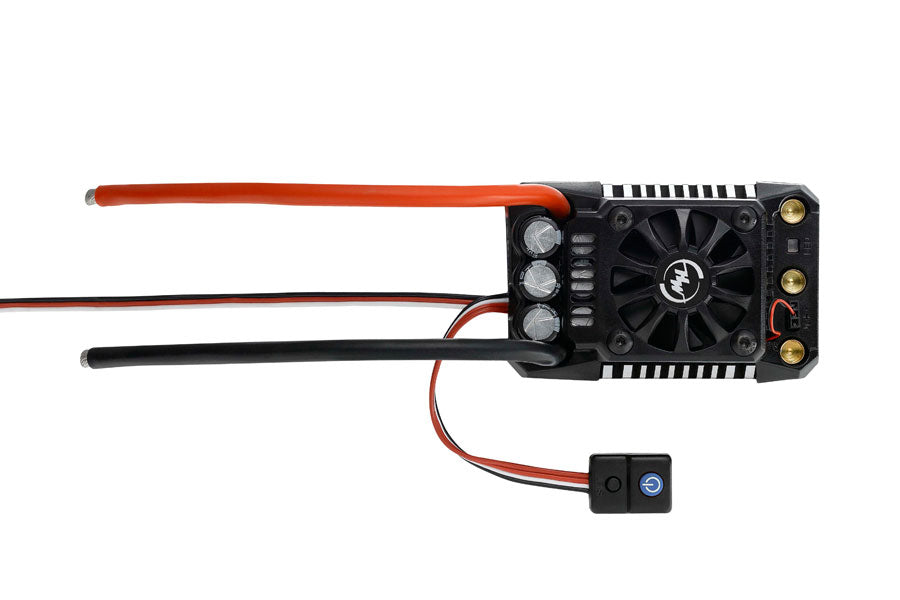

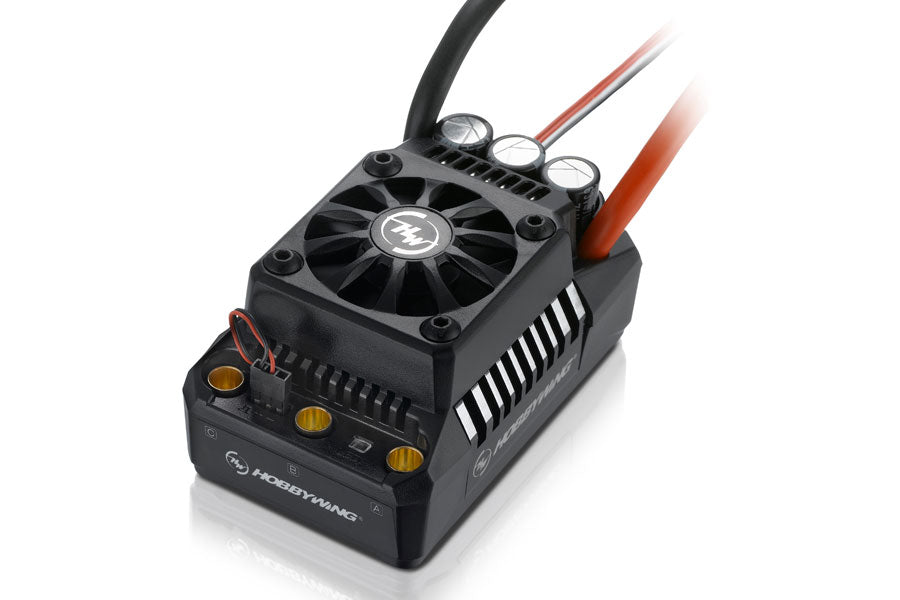

HOBBYWING EZRUN MAX5-V3 WATERPROOF SPEED CONTROLLER

HOBBYWING EZRUN MAX5-V3 WATERPROOF SPEED CONTROLLER

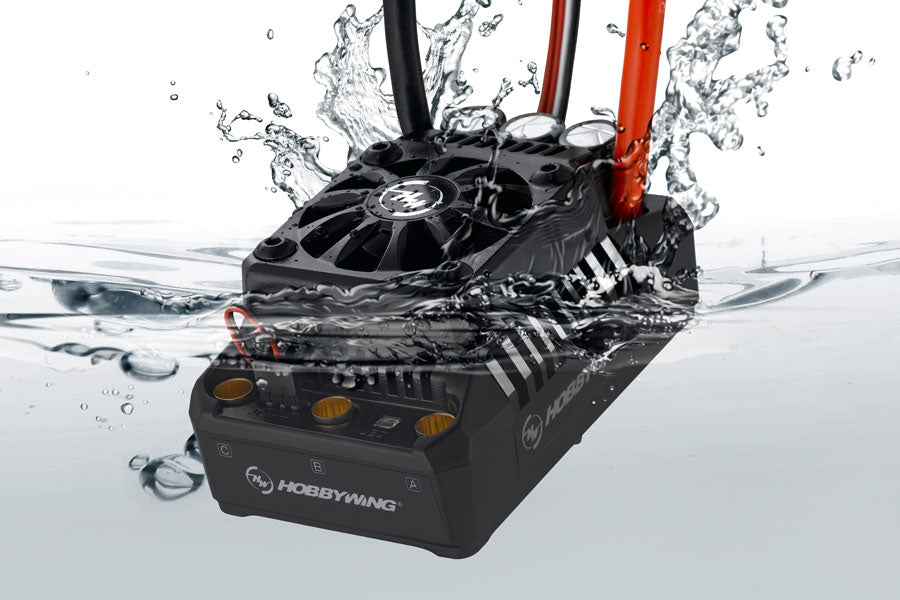

The EZRUN MAX 5 provides the ultimate power upgrade solution for many popular 1/5th scale vehicles like HPI Baja buggy, Losi 5IVE-T Nitro-to-Electric truck, and Desert Buggy XL Nitro-to-Electric buggy. It’s also suitable for various other brand of 1/5th scale on-road cars, truggies, SCTs and buggies. The waterproof and dust-proof design allows the MAX5 to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.

Built with the most rugged and high-quality components and coupled with cutting-edge firmware, the EZRUN MAX5 is able to deliver unmatched power and performance for even the most hardcore of racing applications, but is also responsive enough to protect itself from damage due to overloading due to physical abuse, overuse or even human error.

The MAX5 has adopted the world’s first HV built-in BEC with an output current of up to 25Amp and a switchable output voltage of 6V-7.4V. The high voltage BEC is designed to handle today’s high voltage servos on demand used by large scale vehicles.

The MAX5 is built with internal anti-spark circuitry that protects not only battery connectors from damage but helps to prevent physical injury due to burnt fingers from the inevitable issue of sparking when hooking up the ESC to higher voltage battery packs (5S/6S/7S/8S).

With incredible acceleration capabilities and a rock-solid, stable output, the MAX5 can handle instant full-torque start-ups for wheelies, high-speed racing on straightaways and powering through the bumpiest terrain. The user will have the choice of adjusting the ESC parameters as per his preference and ability.

HobbyWing EzRun MAX5 V3 Features:

• High Reliability & Durability
• Great Flexibility & Versatility

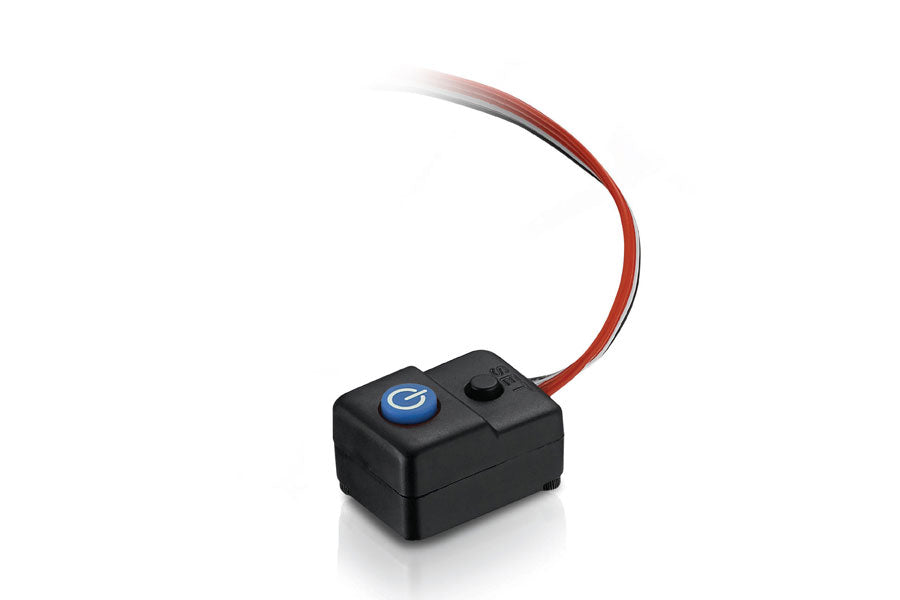

• Advanced and Secure Electronic Switch
• Applicable to All Weather Conditions
• High Voltage Built-in BEC
• Advanced and Secure Electronic Switch
• Regular Firmware Updates - Free of Charge
• Built-in Anti-Spark System
• Maintenance Free

Spec Check:

• Scale: 1/5th
• Brushed/Brushless: Brushless
• Sensored/Sensorless: Sensorless
• Waterproof: Yes
• Cont./Peak Current: 200A/1300A
• Input: 3-8S LiPo/9-24 Cells NiMH
• BEC Output: Switch Mode: 6V/7.4V,6A
• Input Wires: Red-8AWG-200mm*1/Black-8AWG-200mm*1
• Output Wires: Black-10AWG-200mm*3
• Input Connectors: No
• Output Connectors: 6.5mm Female Gold Connectors (pre-soldered onto the PCB)
• Fan Size: 45.0x45.0x10.0mm
• Fan Voltage Range: 5-7.4V
• WiFi Module: Supported
• Program Port: FAN/Program Port
• Size: 93.4x58.1x47.8mm
• Weight: 342g
